80mm kiosk Panel Mounting Printer

Model:D347-V

130.00 $ 120.00 $

Clear
Specification

80mm Kiosk RS232+USB Themal Printer

Features:

  • Brand name printer mechanism(CAPD347)

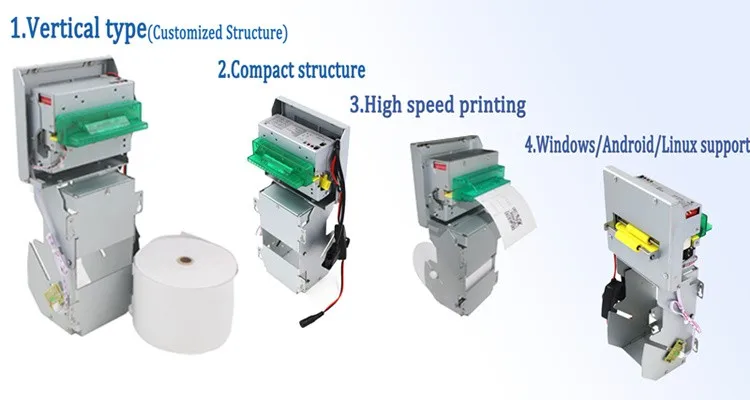

  • Panel vertical mounting
  • High speed 200mm/s
  • Full/partial cutting method (by adjustable)
  • Paper jam detection
  • Dragging paper detection
  • Blackmark detection

Application:

  • Payment kiosk;
  • information machine;
  • parking system;
  • queue management kiosk;
  • ATM;
  • gas station kiosk;
  • ticket vendor;
  • multimedia kiosk;
  • self-service terminal and more

Specification:

mechanism: CAPD347
Printing method Thermal dot line printing
Dots/line 576 dots/line
Dot pitch 8 dot/mm
Paper width 80 mm
Printing width 72 mm
Paper thickness 54~78 um
Roll diameter Max180 mm (external roll support)
Printing speed 200 mm/s
Paper feed direction 180° horizontal
Sensors Head temperature Thermistor
Paper press shaft Mechanical switch
Paper end Photo interrupter
Cutting type Full/partial ( by adjustable)
Font size ASCII:9*17;12*24; Chinese: 24*24
Power supply Logic circuit 4.75~5.25 V
Motor 21.6~26.4 V
Dimension  (L*W*H) 227.5*127.8*131.45 mm
Weight  Approx 1.92 kg
Reliability Circuit: over 1,000,000,000 pulses Cutter: over 7,000,000 cuts Thermal head: over 100 km MCBF: 37,000,000 lines
Ambient environment Work temperature -10 ℃~50℃
Work humidity 20~85% RH
Storage temperature -25℃~70℃
Storage temperature 10~90% RH
Interface RS-232 /USB/Parallel
power supply DC 24V/2.5A
Command set ESC/POS
Barcode supported
Firmware location 512KB Flash memory
Buffer 32 KB
SRAM 64KB (extra)
Driver Parallel/USB driver
System Windows/Android/Linux OS
Accessories: Sensors paper near end sensor;
paper jam sensor;
dragging paper sensor;
Paper holding unit;
Paper bezel(paper guide mouth)
Interface connector;
Power supply unit
Cable
